How to Shard a KV Store

kvgo started as a hash map behind a single lock. It worked, until concurrent writes made every thread queue up for the same structure.

My open-source KV store, written in Go: github.com/robin-vidal/kvgo. is a multithreaded, Speaks the Redis wire protocol (RESP), so existing Redis clients and tools like redis-cli can talk to it unchanged. A key-value store: a database that maps keys to values, with no schema and no query language. Reads and writes are point lookups like GET key and SET key value. I’m building in Go. The first version was simple: a hash map behind a single lock. It worked, until I ran concurrent writes and watched every thread queue up waiting for access to the same structure.

This post walks through the three decisions that shaped the Splitting one data structure into N independent partitions (shards), each with its own lock, so operations on different shards never wait on each other. architecture: how many shards, how to route keys, and what not to build yet.

These are in-process numbers: Go’s unit of concurrency: a function running independently, scheduled by the Go runtime onto OS threads rather than getting one each. They start at a few kilobytes of stack, so running thousands of them is routine. calling the sharded map directly, with no TCP. They isolate lock behaviour, so read them as such rather than as kvgo’s throughput. Over the wire the same box serves about 180k reads per second, and writes land well below that, bound by durability rather than by locking.

All benchmarks below are SET-only workloads with pre-generated keys from a 1M key space, on a 10-core Linux box. Each point is the median of 10 runs of 500k operations.

The Bottleneck

A naive KV store is a map behind a single Mutual exclusion lock: only one thread at a time may hold it, so only one thread at a time runs the critical section it guards.. Every operation, read or write, acquires that lock before touching the data.

On a single thread this is fine. But under concurrent load, threads pile up waiting for the lock even when they are operating on completely different keys. The lock becomes the bottleneck, and adding more CPU cores does not help:

ops / sec by concurrent workers
ops / sec by concurrent workers
single mutex
12.536511e+06 ops/s
21.847578e+06 ops/s
41.75519e+06 ops/s
81.685488e+06 ops/s
161.680981e+06 ops/s
321.725182e+06 ops/s
641.702716e+06 ops/s

Throughput drops the moment a second worker shows up, from 2.5M ops/sec down to 1.8M, and stays there no matter how many more you add. Every worker past the first spends its time queueing rather than working. The fix is sharding: split the map into N independent buckets, each with its own lock. Two writers hitting different keys in different shards no longer block each other.

How Many Shards?

The idea is straightforward, but the first question is how many shards to create. Too few and you still get Threads competing for the same lock. The time they spend blocked waiting for it is time not spent doing work, so throughput stops scaling with cores.. Too many and you waste memory for negligible gain.

The natural anchor is the number of CPU cores. At peak concurrency, the OS can only run as many threads simultaneously as there are logical CPUs. One shard per core means that in the best case, every concurrent writer lands on a different shard with zero contention.

That best case is a floor, not a target. With random keys, two of eight writers landing on the same one of eight shards is not the exception but the rule, and the benchmark at the end of this post has 32 shards beating 8 on the same ten cores.

In kvgo, the shard count comes from a config value, defaulting to the number of cores, which keeps it easy to tune and benchmark. On the evidence below that default is too low, and I intend to raise it. Each shard holds its own map and its own Go’s reader/writer lock: any number of readers can hold it at once, or a single writer exclusively., so reads can happen in parallel while writes get exclusive access per shard.

go
type databaseShard struct {
    mu   sync.RWMutex
    data map[string]string
}

type Database struct {
    shards []databaseShard
}

func New(cfg *config.Config) *Database {
    db := &Database{
        shards: make([]databaseShard, cfg.ShardAmount),
    }
    for i := 0; i < cfg.ShardAmount; i++ {
        db.shards[i].data = make(map[string]string)
    }
    return db
}

The shard count is fixed at startup. Since kvgo runs on a single node, there is no resharding at runtime, so a static count is the right call.

How to Route Keys

With shards in place, every operation needs to find the right shard for a given key. The requirements are simple: fast, uniform distribution, deterministic.

I went with A fast, non-cryptographic hash function that mixes the input byte by byte into a 64-bit value: Fowler-Noll-Vo, 64-bit alternate variant.. It is fast, has excellent distribution for short string keys, and is built into Go’s standard library. MD5 or SHA would work too, but cryptographic properties are overkill here.

go
func getShard(key string, shardAmount int) int {
    hasher := fnv.New64a()
    hasher.Write([]byte(key))
    return int(hasher.Sum64() % uint64(shardAmount))
}

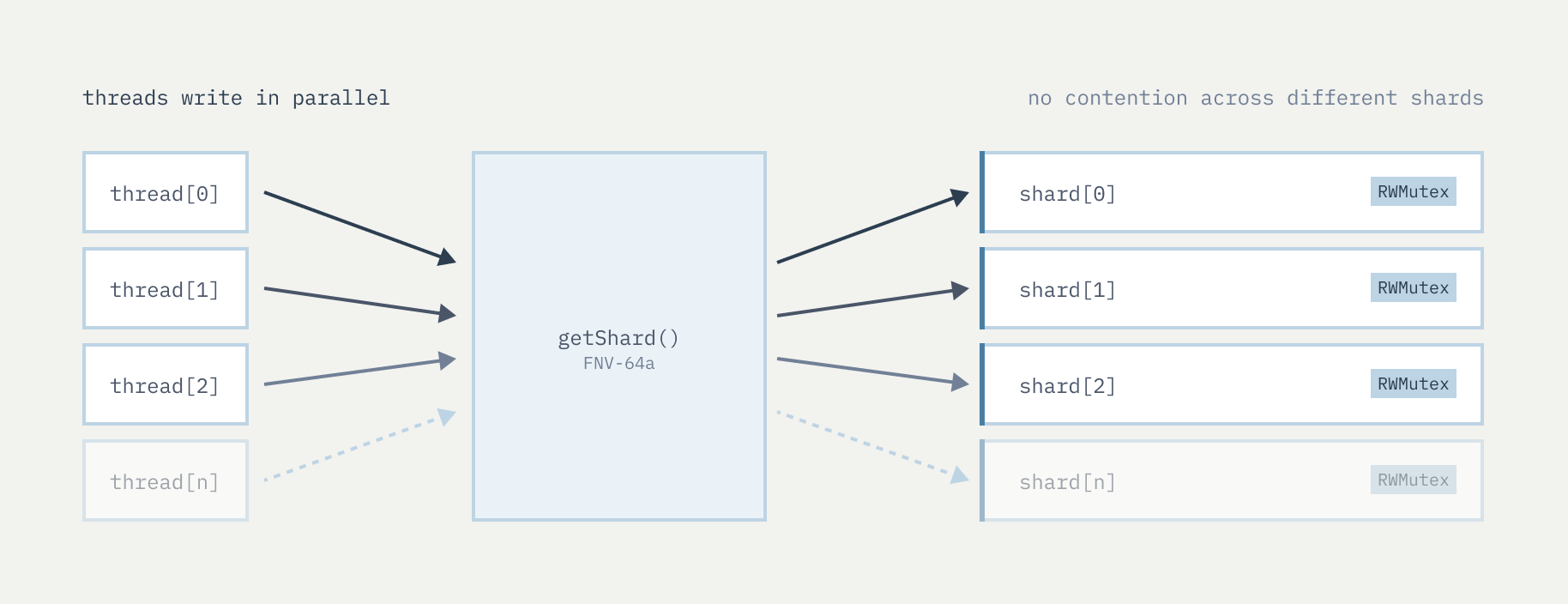

Every operation calls getShard to find the right bucket, then locks only that shard. A write takes an exclusive lock, a read takes a shared one. Putting it all together, the full flow looks like this:

Here is the distribution across 8 shards on a workload of 100k keys with common prefixes and sequential suffixes (user:0, user:1, …, session:0, etc.):

keys per shard
keys per shard
keys per shard
012438 keys
112587 keys
212526 keys
312491 keys
412553 keys
512472 keys
612509 keys
712424 keys

The distribution stays close to uniform even with structured key patterns. No shard is starved, no shard is overloaded.

Why Not Consistent Hashing?

Keys and nodes are hashed onto a ring; a key belongs to the next node clockwise. Adding or removing a node only moves the keys in its arc, instead of remapping everything like hash % n does. is designed for dynamic clusters. Cassandra and DynamoDB use it so that when a node joins or leaves, only a fraction of keys need to move. In kvgo, the shard count is fixed at startup and nothing joins or leaves at runtime. hash % n is simpler and does the job.

What would change the answer is splitting the keyspace across several machines that come and go, the way TiKV and CockroachDB split data into A contiguous slice of the sorted keyspace, owned by one group of nodes. TiKV and CockroachDB split their data this way and move ranges between nodes to rebalance, which is what makes the node set dynamic.. There, n changes at runtime and hash % n remaps almost every key each time it does, so a ring with Virtual nodes: each physical machine takes many positions on the hash ring instead of one, which evens out the key distribution and spreads the load of a departing node across all the others. earns its place. That is a distribution problem, not a locking one.

The Result

With all of this in place, here is the same benchmark again, this time comparing the single-mutex version against 8 and 32 shards:

ops / sec by concurrent workers
ops / sec by concurrent workers
single mutex8 shards32 shards
12.536511e+06 ops/s2.536789e+06 ops/s2.508151e+06 ops/s
21.847578e+06 ops/s2.115305e+06 ops/s2.431019e+06 ops/s
41.75519e+06 ops/s2.084147e+06 ops/s2.23415e+06 ops/s
81.685488e+06 ops/s2.211046e+06 ops/s2.700516e+06 ops/s
161.680981e+06 ops/s2.487386e+06 ops/s3.098551e+06 ops/s
321.725182e+06 ops/s2.934986e+06 ops/s3.601657e+06 ops/s
641.702716e+06 ops/s3.247284e+06 ops/s3.832942e+06 ops/s

Sharding works, and it works in the direction the single lock refuses to go: throughput climbs with concurrency instead of collapsing. At 64 workers, 8 shards nearly doubles the single lock, 3.2M against 1.7M ops/sec.

The gap between 8 and 32 shards is the more interesting one. Take the 8 worker point: 8 shards gives 2.2M ops/sec, 32 shards gives 2.7M on the same hardware, and the gap widens from there. One shard per core sounds like enough, but with random keys it is not. With 8 writers on 8 shards, the odds that no two land on the same shard are about 0.24%. Collisions are the rule, not the exception, and the cure is simply to have more shards than cores.

Thanks for reading :)


kvgo is on GitHub at github.com/robin-vidal/kvgo. The sharding implementation is in internal/database/database.go.
